Convergence Module

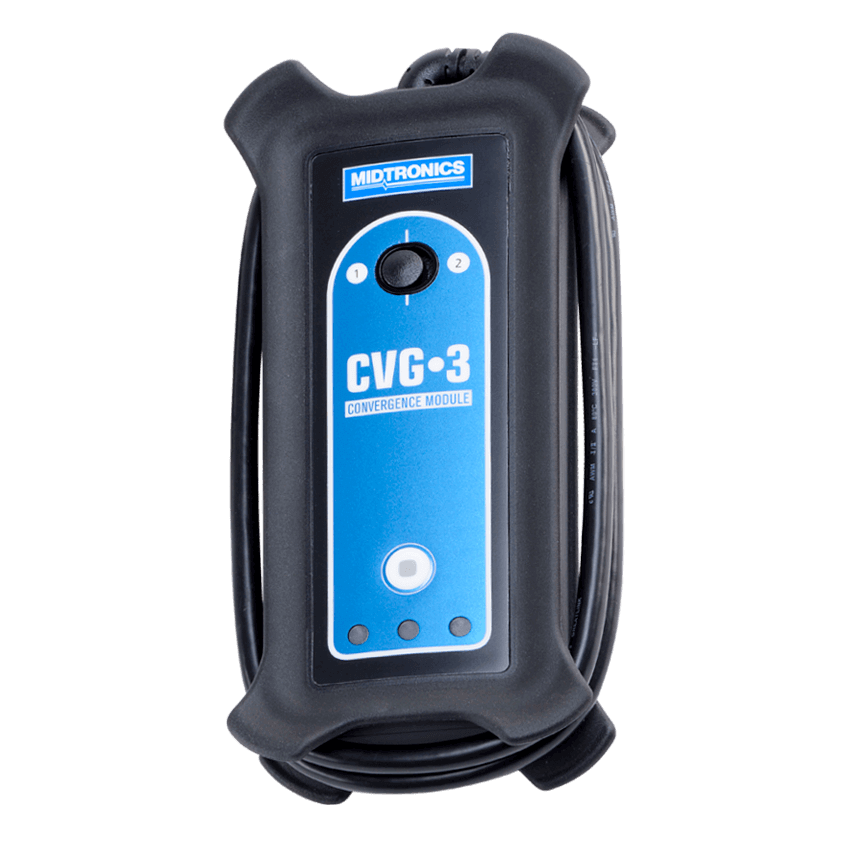

An OBD-II device for quick battery inspection.

• Easily capture battery Open Circuit Voltage (OCV) and VIN without popping the hood
• Automatically transmit inspection data to BMIS for process visibility and compliance

CVG-3 SELECTED FEATURES

• Captures the battery’s OCV and VIN via OBD-II port via J1979 connector
• Transmits VIN and OCV to BMIS via Wi-Fi
• Operates as a stand-alone device as well as a pass-through device with the MCC-070 Controlled Charger
• Green, blue, and red LEDs indicators provide feedback to the user
• Power dock enables CVG-3 to connect to Wi-Fi and transmit data

Quick Battery Inspection through OBD-II

Performing routine battery inspections are important to build customer trust and satisfaction as well as reduce early life battery failures.

• Enables the technician to quickly inspect the battery encouraging routine battery inspection
• Sends the inspection data to BMIS allowing visibility into the compliance of in-shop
  processes

Analytics and Communication

• BMIS integration supports automated over-the-air software updates and analytical reporting
  • Capture and review vehicle battery inspection data
  • Visibility into process compliance

Product Specifications

APPLICATIONS

• Automotive

OPERATING PARAMETERS

• External Battery Voltage Range: 8V – 32V

VEHICLE INTERFACE

• J1962 Connector

PROTOCOL

• CAN
• ISO9141-2
• KWP-2000
• J1850-VPW
• J1850-PWM
• 92Hm/2 (DIAG-H)
• H99B
• DS3

COMMUNICATION

• Wireless Communication
  • Class 2 Bluetooth

Wi-Fi Communication

• 2.4 Ghz 802.11 B, G, N
